Place of Origin : China load cell
Model Number : IN266
Brand Name : Innovation
MOQ : 1 pc
Price : USD1-USD100
Payment Terms : L/C, T/T
Supply Ability : 1000PCS/MONTH
Delivery Time : 7-15DAYS
Packaging Details : CARTON
Type : Tension and Compression Load Cell
Tension and Compression Load Cell IN266
Alloy steel Load Cell
Capacity from 1,000kg...300,000kg

| PARAMETER | UNIT | TECHNICAL DATA |
| Rated capacity (Emax) | kg | 25/50/200/500/1,000/2,000/3,000/5,000/10,000/20,000/30,000 |
| Accuracy class |
| 0.3 |
| Sensitivity | mV/V | 2.0 10% |
| Zero balance | mV/V | 0.04 |
| Creep over 30min | % | 0.1 |
| Temperature effect on zero | %/ | 0.0012 |
| Temperature effect on output | %/ | 0.0023 |
| Hysteresis | % | 0.017 |
| Linearity deviation | % | 0.017 |
| Repeatability | % | 0.017 |
| Nominal temperature range |
| -10 to +40 |
| Service temperature range |
| -10 to +50 |
| Limit load | % of R.C. | 150 |
| Break load | % of R.C. | 300 |
| Nominal excitation | V | 5~12 |
| Max. excitation | V | 15 |
| Input impedance |
| 400 25 |
| Output impedance |
| 350 3 |
| Insulation resistance | M | >2000 |
| Cable length | M | 2 |
| Cable type |
| 4 conductors, Braid Shielded, Black PVC Jacket |
| Color code |
| +Exc-Red, +Sig -Grn, -Exc-Blk, -Sig- Wht |
| Construction |
| Alloy steel |
| Protection class to IEC529 |
| IP 67 |
|
|
|
|
|
|
|
|
|
|

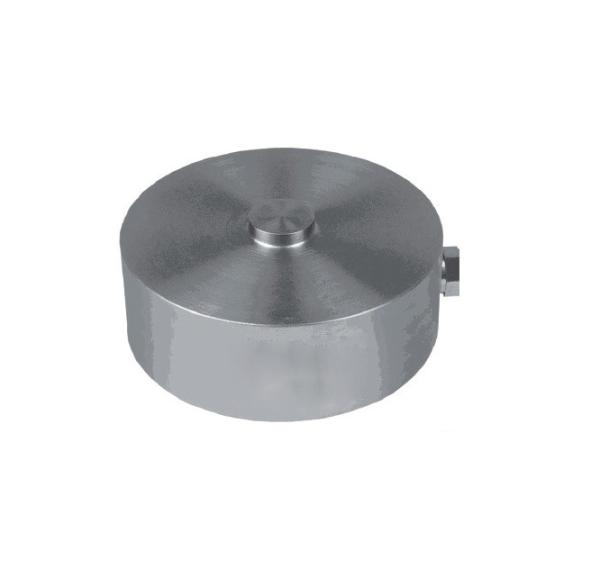

Tension and Compression Load Cell IN266 Images |
