Screw Tension and Compression Force Sencor Load Cell IN-MT-013A

Product Categories

Innovation Electronic Co.,Ltd

Contact Now

Name: Screw Tension and Compression Force Sencor Load Cell INMT013A
Brand: Innovation
Price: 1 USD

Place of Origin : China

Brand Name : Innovation

Model Number : IN-MT-013A

MOQ : 1 pc

Price : USD1-USD100

Payment Terms : L/C, T/T

Supply Ability : USD1-USD100

Delivery Time : 7-15days

Packaging Details : carton

Contact Now

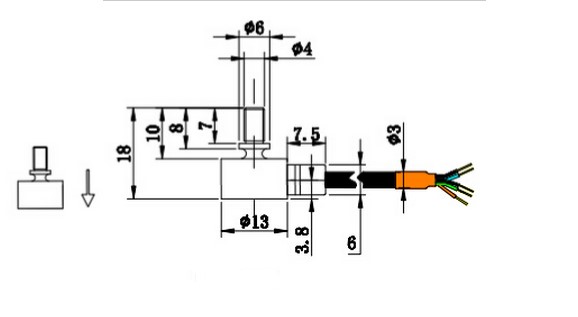

LOAD CELL DIMENSIONS:

Screw Tension and Compression Force Sencor Load Cell IN-MT-013A

LOAD CELL PARAMETERS:

Capacity	5-50kg	Material	Stainless Steel
Rated Output	1.0-1.5mV/V	Output Impedance	350±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	1.0-5%F.S.	Recommended Excitation	2.5-5V
Hysteresis	1.0%F.S.	Maximum Excitation	10V
Repeatability	1.0%F.S.	Compensated Temp Range	-10~60ºC
(30)Creep (30min)	0.1%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.1%F.S./10ºC	Safe Load Limit	120%
Temp Effect on Zero	0.1 %F.S./10ºC	Ultimate Load Limit	150%
Input Impedance	350±5Ω	Cable Size	φ(2-3)x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White

Screw Tension and Compression Force Sencor Load Cell IN-MT-013A Images
