Home > Force and pressure Sensor >

IN-CLMGB load cell

Product Categories

Innovation Electronic Co.,Ltd

Contact Now

Name: INCLMGB load cell
Price: 1 USD

Place of Origin : China

MOQ : 1 PC

Price : USD1-USD100

Payment Terms : L/C, T/T

Supply Ability : 1000PCS/MONTH

Delivery Time : 7-15 DAYS

Packaging Details : CARTON

Contact Now

IN-CLMGB load cell

Items	UNIT	TECHNICAL DATA
Rated capacities(Emax)	N	30k
Sensitivity	mV/V	1.0±0.5
Total error	F.S	≥1%
Creep error(30min)	F.S	±0.1%
Zero balance	F.S	±1%
TCO	F.S/℃	±0.2% / 10
TC SPAN	F.S/℃	±0.5% / 10
Input impedance	Ω	350±50
Output impedance	Ω	352±3
Insulation impedance	MΩ	≥5000
Temperature range, operating	℃	-30~ +70
Maximum safe overload	F.S	150%
Ultimate overload	F.S	200%
Excitation, recommend	V	10-12V DC
Excitation, maximum	V	15V DC
Protection class		IP66
Construction		Stainless steel
Wiring		Exc+(Red) Exc-(Black) Sig+(Green) Sig-(White)

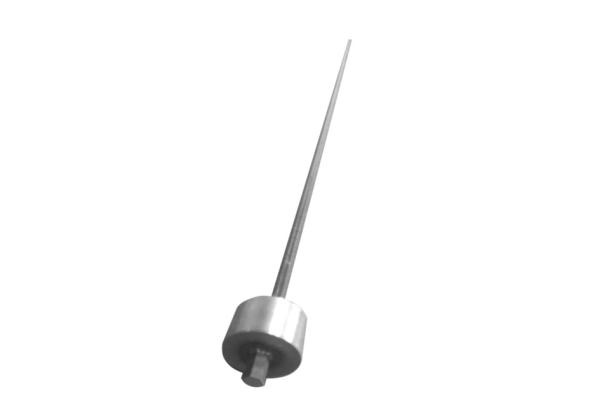

IN-CLMGB load cell Images
